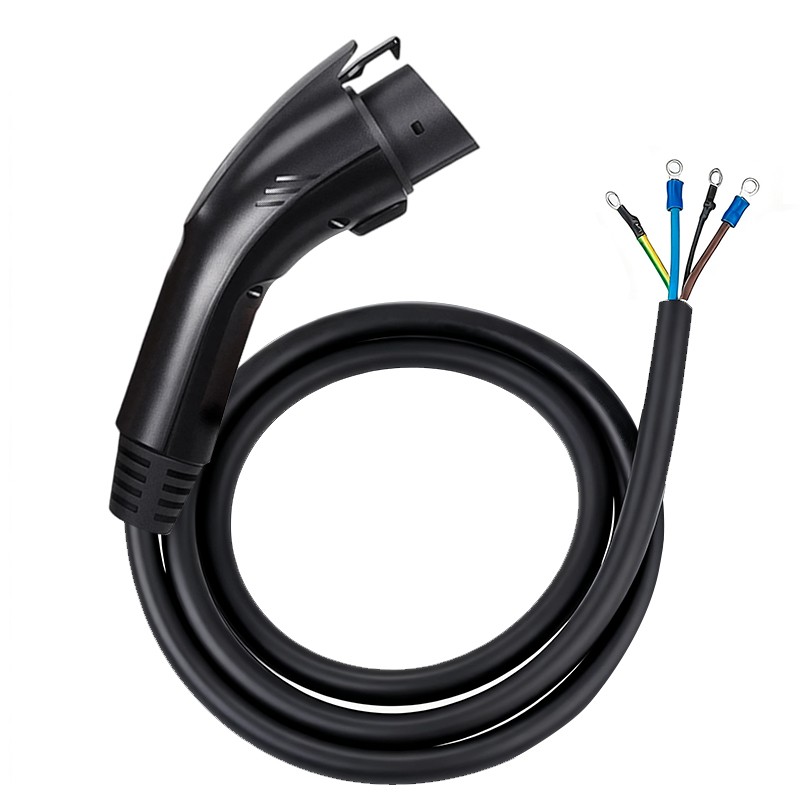

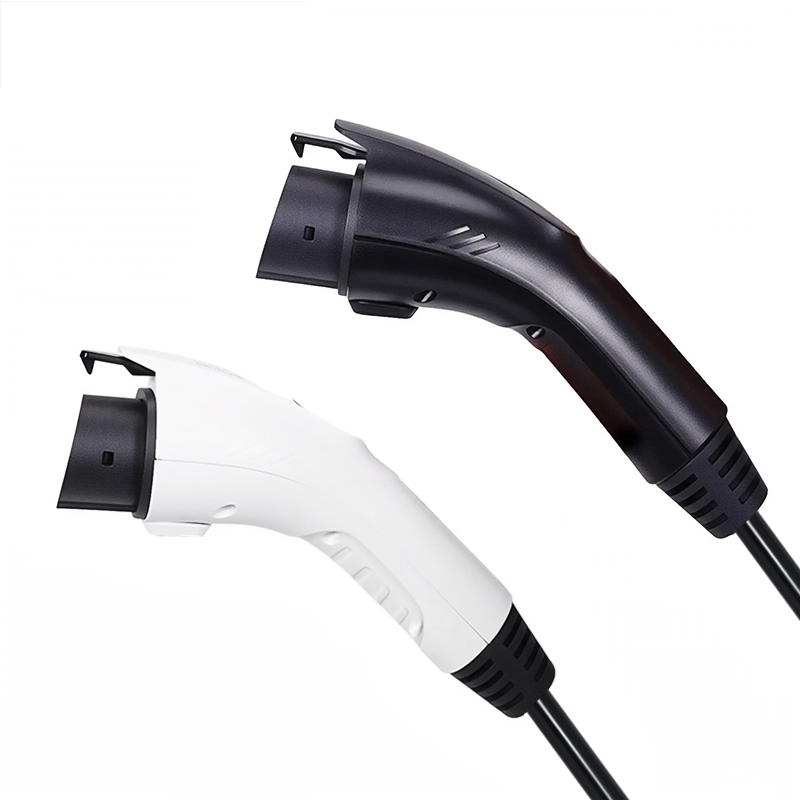

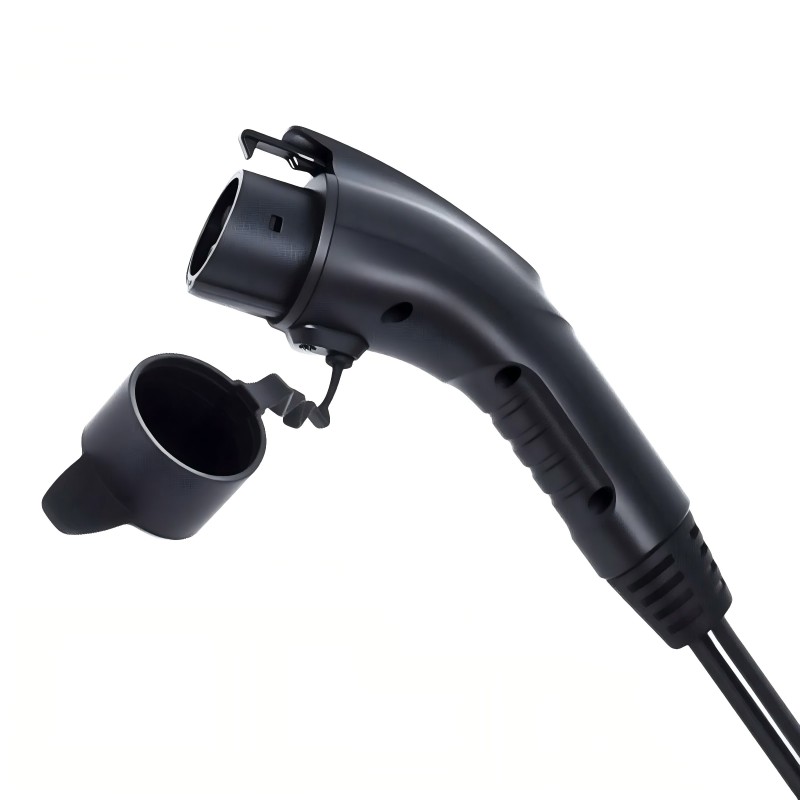

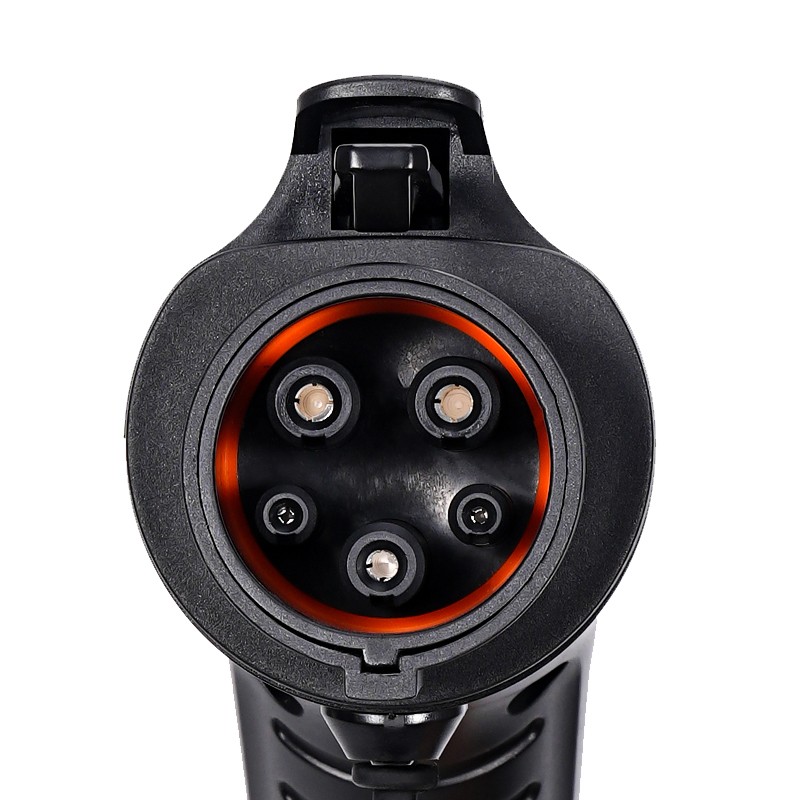

Type1 ev charging cable and connector

1.Multi-power Adaptation：Offers three power specifications (7kw/11kw/22kw), supporting 16A/32A single-phase or three-phase power supply. Meets the needs of daily home energy supplement, commercial fast charging and other scenarios, compatible with all new energy vehicles with Type2 interface.

2.High Protection & Durability：IP65 protection level with excellent dustproof and waterproof performance. Combined with plastic shell material, it can operate stably in complex outdoor environments for a long time, adapting to 5%~95% relative humidity and 80KPA~110KPA atmospheric pressure.

3.Wide Temperature Adaptability：Operating temperature range of -30℃~+60℃ and storage temperature of -40℃~+70℃, resistant to extreme climates such as severe cold and high temperature, covering the usage needs of multiple regions.

4.Comprehensive Safety Protection：Equipped with 8 safety protection functions (over/under frequency, overcurrent, leakage current, overtemperature, overload, ground, short circuit, over/under voltage, lightning protection). Some protections support automatic recovery, ensuring safe and reliable charging.

5.Convenient Authorization Management：Supports RFID card control, enabling hierarchical management of charging permissions to prevent unauthorized use, suitable for home, commercial and other multi-scenario control.

6.nternational Certification Compliance：Passed TUV and CE authoritative certifications, complying with international standards such as IEC 61851-1:2010 and EN 61851-1:2011, with dual guarantees of quality and compliance.

7.Compact & Easy Installation：Dimensions of only 350mm×215mm×110mm and weight of 7.0KG, compact in size without occupying space. Wall-mounted installation is flexible and convenient, suitable for various installation scenarios.

8.Intuitive Status Control：Equipped with LED status indicators to display charging progress and equipment operation status in real time. Simple and easy to operate, no professional knowledge required.

1.Residential Homes：Private garages, courtyards and other scenarios, providing daily convenient charging for home new energy vehicles, eliminating the need to go out to find public charging piles, saving time and effort.

2.Commercial Parking Lots：Supporting parking lots of shopping malls, office buildings, supermarkets and other commercial venues, providing value-added charging services for customers, enhancing venue competitiveness and customer experience.

3.Corporate Parks：Parking lots of companies, factories and other parks, meeting the charging needs of employees' commuter vehicles, practicing the concept of green office and improving employee benefits.

4.Public Charging Areas：Urban community public parking lots, parks, road service areas, etc., as a supplement to the public charging network, alleviating the shortage of public charging resources.

5.Hotels & Homestays：Supporting facilities in parking lots of high-end hotels and boutique homestays, providing charging services for self-driving guests, improving accommodation supporting facilities and attracting new energy vehicle owners.

6.Automotive 4S Stores：Used for new car display, energy supplement after customer test drives, or providing after-sales charging services for car owners, enhancing brand service professionalism and customer satisfaction.

1.Q：What power specifications does the charger support? How to choose the right power for me?

A：It supports three power specifications: 7kw, 11kw and 22kw, all of which are AC charging. For daily home commuting and models with small battery capacity, 7kw or 11kw is sufficient; for commercial venues and scenarios with large battery capacity requiring fast energy supplement, 22kw is recommended.

2.Q：Can the charger be installed outdoors? What is its protection performance?

A：Yes, it can be installed outdoors. With IP65 protection level, it has good dustproof and waterproof capabilities, resisting the impact of outdoor environments such as wind, rain and dust. It also adapts to 5%~95% relative humidity and 80KPA~110KPA atmospheric pressure for stable operation.

3.Q：What is the function of the RFID card? How to use it?

A：The RFID card is used for charging permission management and start-stop control. Hold an authorized RFID card close to the charger's induction area to start charging, and swipe the card again after charging to stop, effectively preventing unauthorized use.

4.Q：What safety protection functions does the charger have?

A：It has 8 safety protection functions: ① Over and under frequency protection; ② Over current protection; ③ Leakage current protection (restart recover); ④ Over temperature protection; ⑤ Overload protection (self-checking recover); ⑥ Ground protection and short circuit protection; ⑦ Over voltage and under-voltage protection; ⑧ Lightning protection, providing all-round charging safety.

5.Q：Which car models is this charger suitable for?

A：It is suitable for all new energy vehicles equipped with Type2 interface, including Battery Electric Vehicles (BEV) and Plug-in Hybrid Electric Vehicles (PHEV), complying with international universal interface standards with strong compatibility.

6.Q：What is the installation method of the charger? Is professional installation required?

A：It adopts wall-mounted installation, with a compact size (350mm×215mm×110mm) and weight of 7.0KG, enabling flexible installation. It is recommended to be installed by professional electricians with relevant qualifications to ensure compliance with electrical safety standards and avoid potential safety hazards.

7.Q：Can it be used normally in extreme weather (such as severe cold and high temperature)?

A：Yes. The operating temperature range is -30℃~+60℃, and the storage temperature is -40℃~+70℃, which can resist extreme climates such as severe cold and high temperature, adapting to the climatic conditions of different regions.

8.Q：Which certifications has the product passed? Is the quality guaranteed?

A：It has passed TUV and CE authoritative certifications, complying with international standards such as IEC 61851-1:2010, EN 61851-1:2011, IEC 61851-22:2002 and EN 61851-22:2002. Production and testing strictly follow relevant specifications, ensuring reliable quality.
