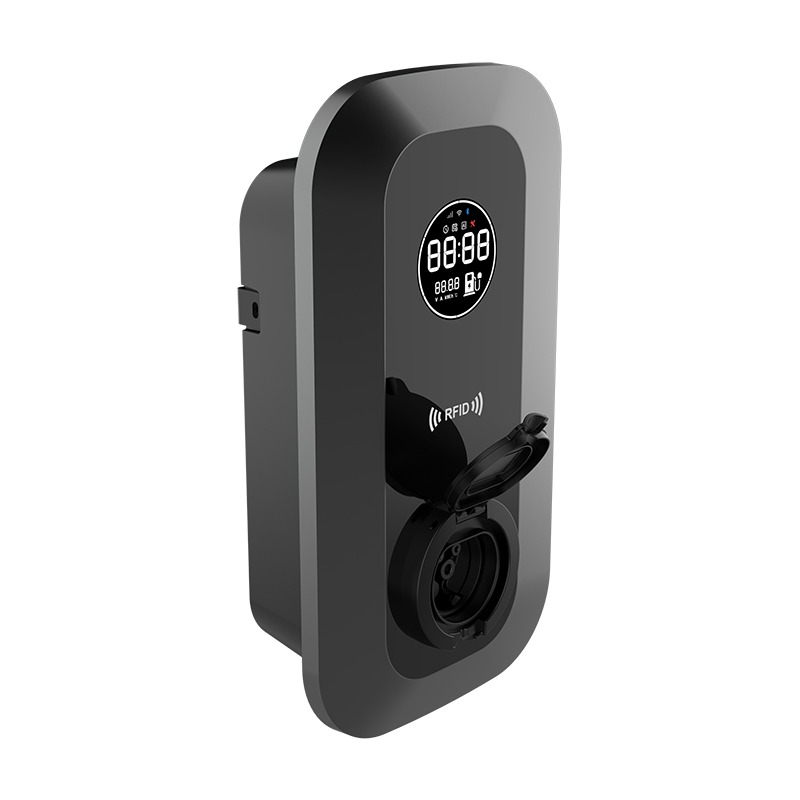

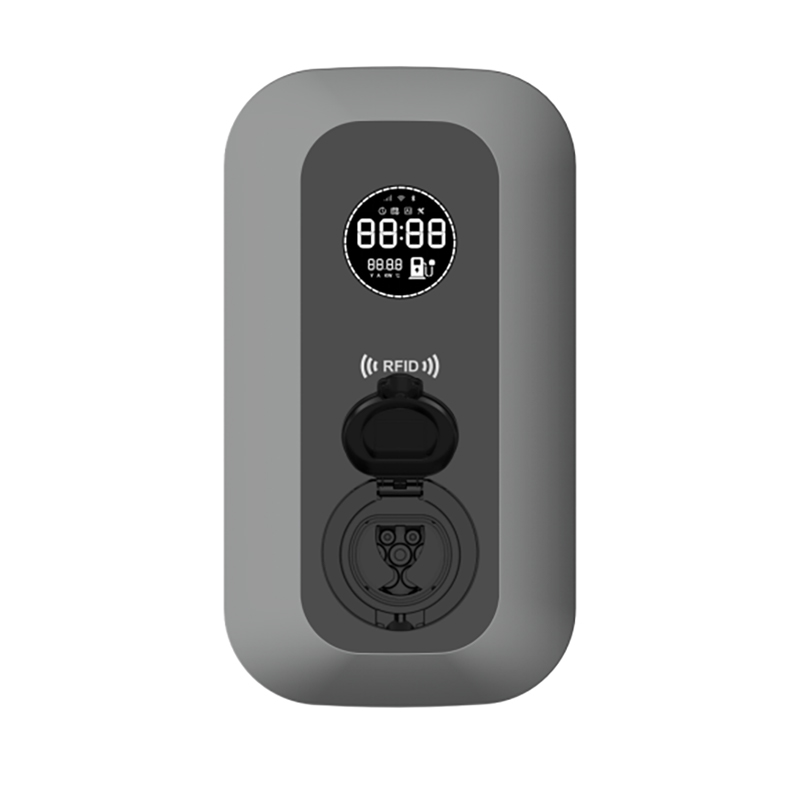

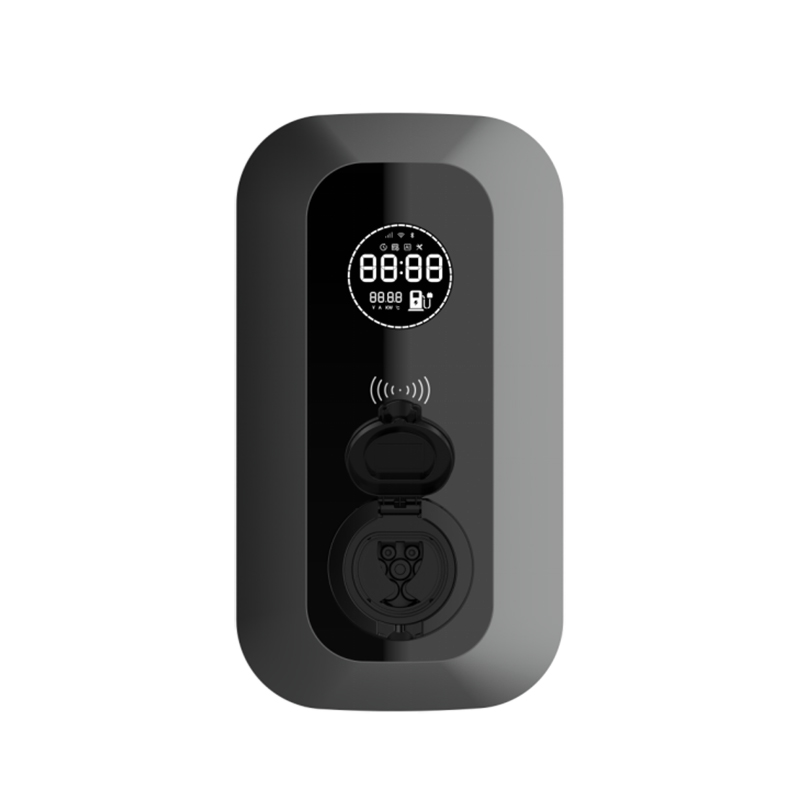

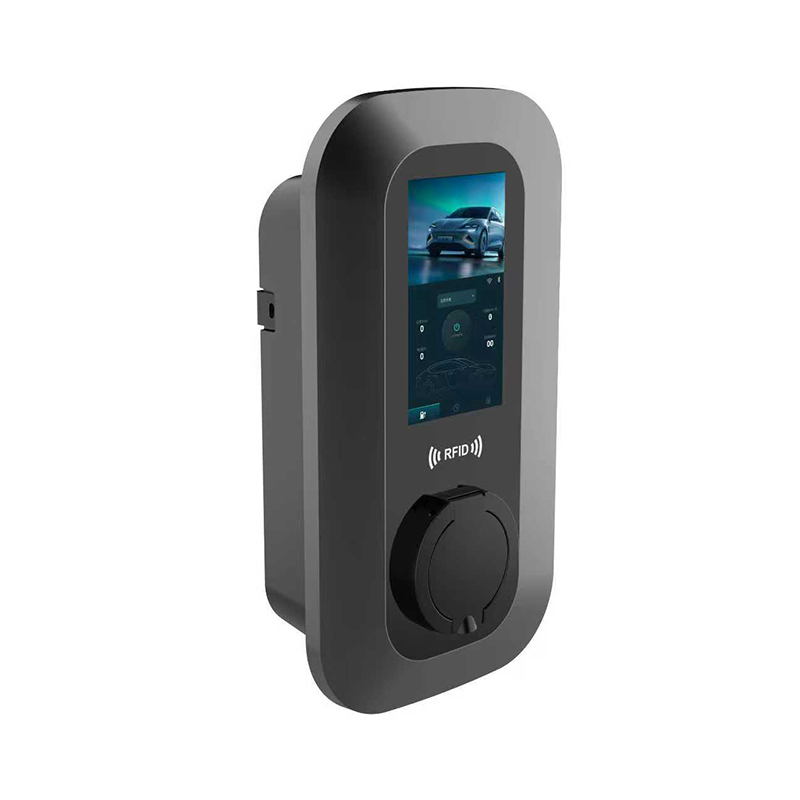

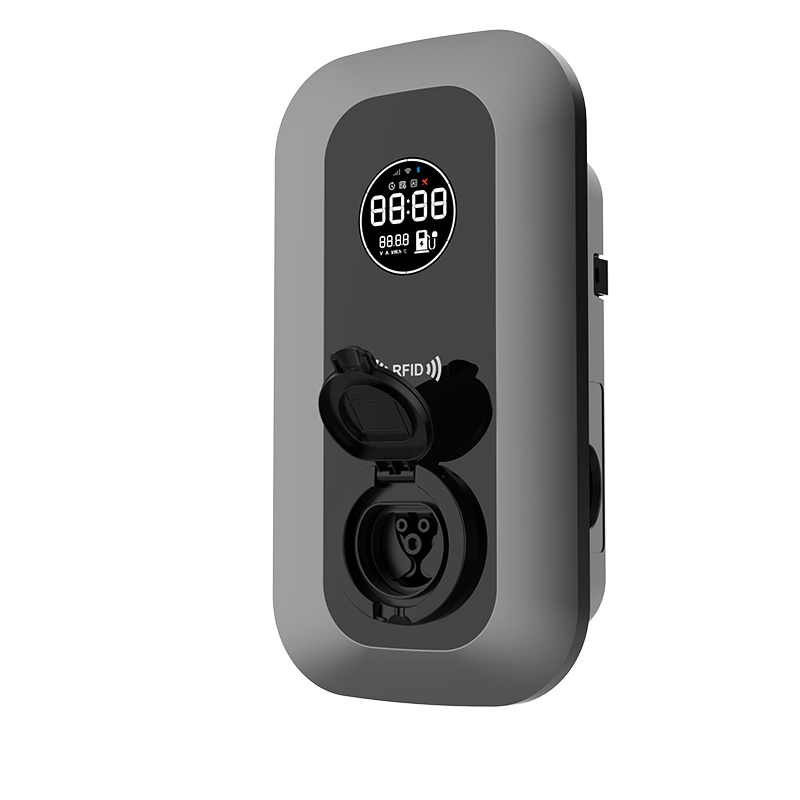

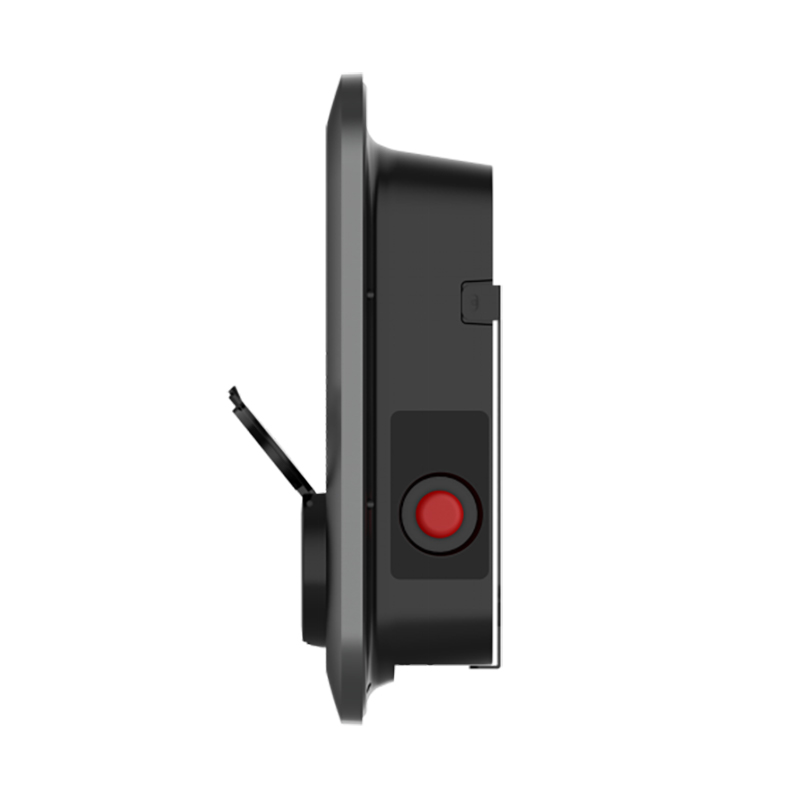

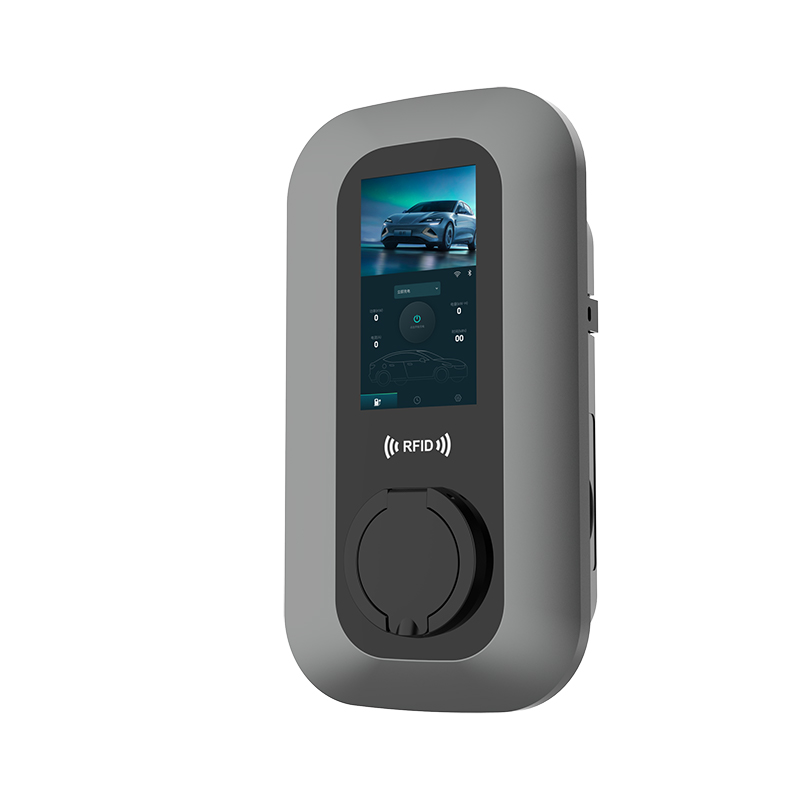

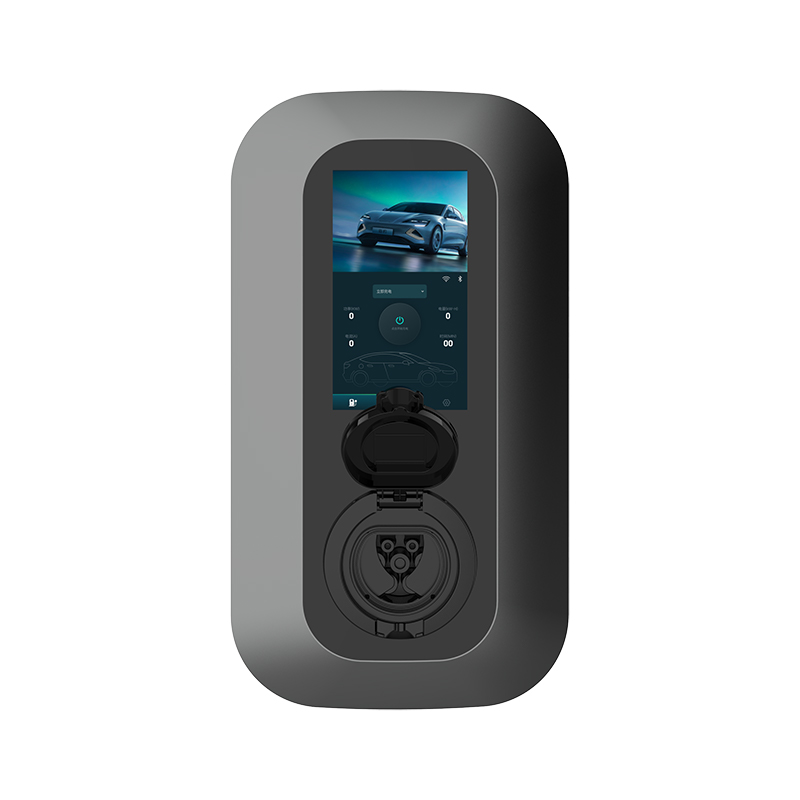

Type2 Wallbox Charger with socket offers 7kw/11kw/22kw multi-power output, supports 16A/32A single-phase or three-phase power supply, features IP65 high protection, RFID authorization management and 8 safety protections, is TUV/CE certified, compatible with all new energy vehicles with Type2 interface, suitable for home and commercial scenarios.
| Plug and charge, zero operation threshold | Wall-mounted space-saving, ultra-convenient installation | Full-interface compatible, no vehicle model restrictions |
 |
 |
 |
Parameters
|
Item |
7kw 11KW 22kw AC EV Charger Station |
|
Product Model |
KRT-EVST-11KW |
|
Rated Current |
16A/32Amp single phase or 3phases |
|
Operation Voltage |
AC 400V Three Phase |
|
Rated frequency |
50/60Hz |
|
Leakage Protection |
Type A +DC6mA |
|
Shell Material |
plastic |
|
Status Indication |
LED Status Indicator |
|
Function |
RFID Card |
|
Atmospheric Pressure |
80KPA ~ 110KPA |
|
Relative Humidity |
5%~95% |
|
Operating Temperature |
-30°C~+60°C |
|
Storage Temperature |
-40°C~+70°C |
|
Protection Degree |
IP65 |
|
Dimensions |
350mm (L) X 215mm (W) X 110mm (H) |
|
Weight |
7.0 KG |
|
Standard |
IEC 61851-1:2010 EN 61851-1:2011 IEC 61851-22:2002 EN 61851-22:2002 |
|
Certification |
TUV,CE Approved |
|
Protection |
1.Over and under frequency protection 2. Over Current Protection 3.Leakage Current Protection (restart recover） 4. Over Temperature Protection 5.Overload protection (self-checking recover) 6. Ground Protection and Short circuit protection 7.Over voltage and under-voltage protection 8. Lighting Protection |
Product Advantages
1. Multi-Power Adaptation:** This device offers three power options (7kW, 11kW, 22kW) and supports 16A and 32A single-phase or three-phase power supplies, making it compatible with all new energy vehicles with a Type 2 interface.
2. High Protection & Durability:** With an IP65 rating, the charger is dustproof and waterproof. Its sturdy plastic shell ensures reliable performance in challenging outdoor conditions, handling 5% to 95% humidity and 80KPA to 110KPA pressure.
3. Wide Temperature Adaptability:** Operating between -30°C and +60°C and with storage capabilities from -40°C to +70°C, this device is built to endure extreme climates.
4. Comprehensive Safety Protection:** Equipped with eight safety features—including overcurrent, leakage current, and short circuit protection—this charger ensures a safe charging experience, with many functions offering automatic recovery.
5. Convenient Authorization Management:** The integrated RFID card control allows for effective management of charging permissions, preventing unauthorized use in residential, commercial, and industrial settings.
6. International Certification Compliance:** This charger complies with TUV and CE certifications and meets international standards like IEC 61851-1:2010, assuring quality and reliability.
7. Compact & Easy Installation:** Measuring just 350mm x 215mm x 110mm and weighing 7.0 kg, this compact charger is easy to install, fitting seamlessly into various spaces.
8. Intuitive Status Control: Clear LED indicators show real-time charging progress and device status, making it user-friendly and easy to operate without special knowledge.
This wall-mounted AC charger supports 7kw-22kw multi-power adjustment, compatible with J1772/Type2/GBT three mainstream interfaces and OCPP1.6 protocol, combined with WIFI intelligent connection, providing an efficient and highly adaptable charging solution for new energy vehicles. Plug and charge, zero operation threshold Wall-mounted space-saving, ultra-convenient installation Full-interface compatible, no vehicle model restrictions
Details
Type2 Wallbox Charger with socket offers 7kw/11kw/22kw multi-power output, supports 16A/32A single-phase or three-phase power supply, features IP65 high protection, RFID authorization management and 8 safety protections, is TUV/CE certified, compatible with all new energy vehicles with Type2 interface, suitable for home and commercial scenarios. Plug and charge, zero operation threshold Wall-mounted space-saving, ultra-convenient installation Full-interface compatible, no vehicle model restrictions
Details
Portable Ev charger offers 3.5/7kw/11kw/22kw multi-power output, supports 16A/32A single-phase or three-phase power supply, features IP65 high protection, and 8 safety protections, is TUV/CE certified, compatible with all new energy vehicles with Type2 interface, suitable for home use Plug and charge, zero operation threshold Portable convenient installation Full-interface compatible, no vehicle model restrictions
Details
This wall-mounted AC charger supports 7kw-22kw multi-power adjustment, compatible with J1772/Type2/GBT three mainstream interfaces and OCPP1.6 protocol, combined with WIFI intelligent connection, providing an efficient and highly adaptable charging solution for new energy vehicles. Plug and charge, zero operation threshold Wall-mounted space-saving, ultra-convenient installation Full-interface compatible, no vehicle model restrictions
Details
Introducing a versatile and efficient dual-socket, floor-standing AC EV charger featuring two 22kW outputs, perfect for meeting the growing demand for electric vehicle charging. With a MID-certified meter, this charger ensures accurate billing, making it a reliable choice for any location. Its IP65 weatherproof protection allows for seamless outdoor installation, designed to withstand various environmental conditions. The charger supports multiple payment options, including RFID, QR codes, and credit cards, providing convenience for users. Additionally, its OTA-upgradable feature enables remote management, simplifying maintenance and updates. This charging solution can effectively accommodate two electric vehicles simultaneously, making it an excellent addition for hotels, offices, and public parking lots. Enhanced with built-in protections against overcurrent, surges, and residual current, this charger prioritizes safety and reliability for both users and the equipment. Embrace the future of charging with this state-of-the-art EV charger!
Details
Introducing a versatile and efficient dual-socket, floor-standing AC EV charger featuring two 22kW outputs, perfect for meeting the growing demand for electric vehicle charging. With a MID-certified meter, this charger ensures accurate billing, making it a reliable choice for any location. Its IP65 weatherproof protection allows for seamless outdoor installation, designed to withstand various environmental conditions. The charger supports multiple payment options, including RFID, QR codes, and credit cards, providing convenience for users. Additionally, its OTA-upgradable feature enables remote management, simplifying maintenance and updates. This charging solution can effectively accommodate two electric vehicles simultaneously, making it an excellent addition for hotels, offices, and public parking lots. Enhanced with built-in protections against overcurrent, surges, and residual current, this charger prioritizes safety and reliability for both users and the equipment. Embrace the future of charging with this state-of-the-art EV charger!
