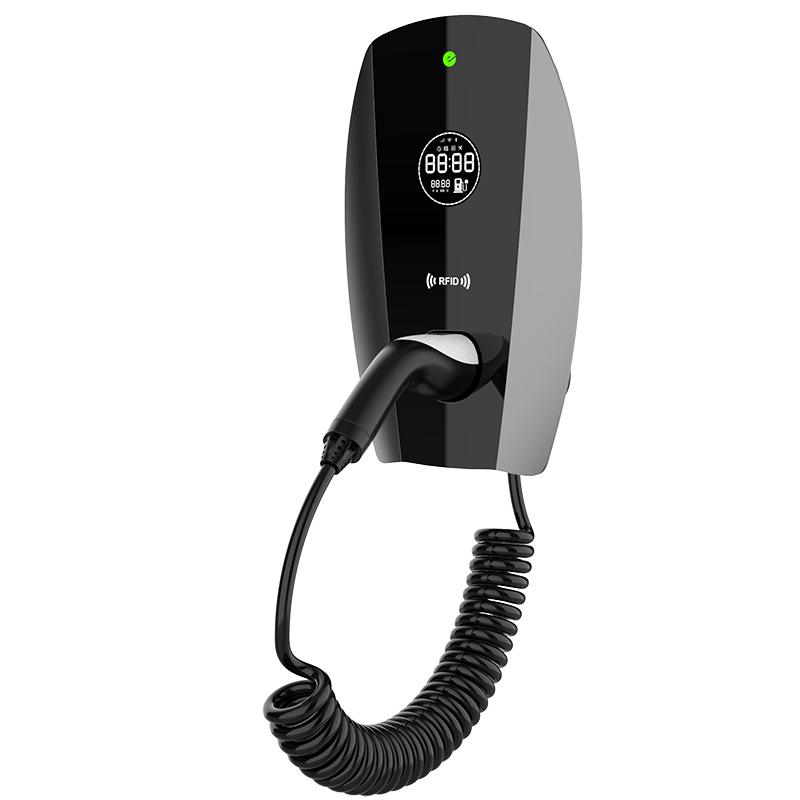

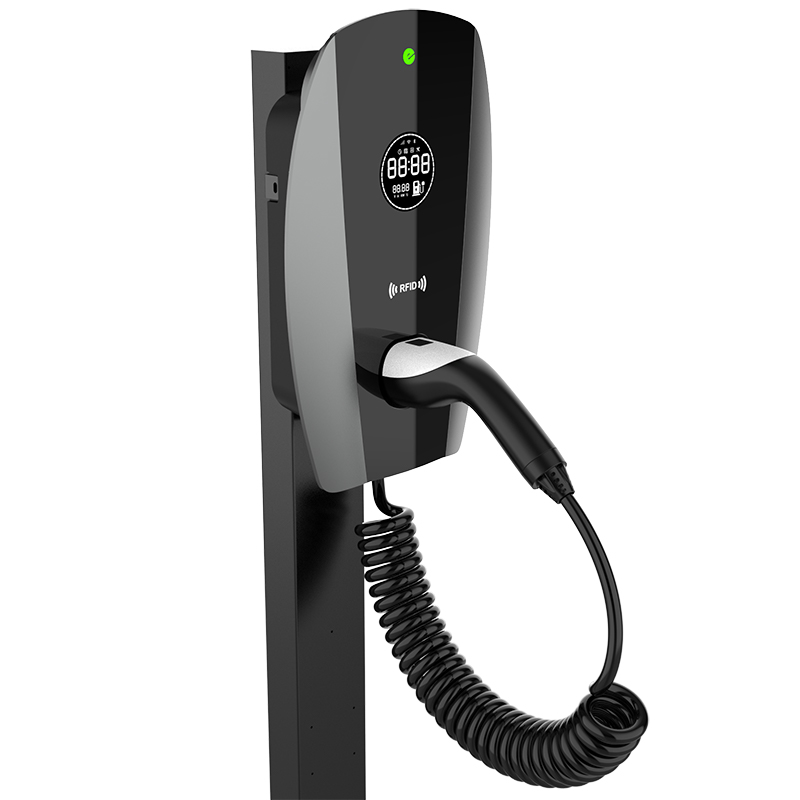

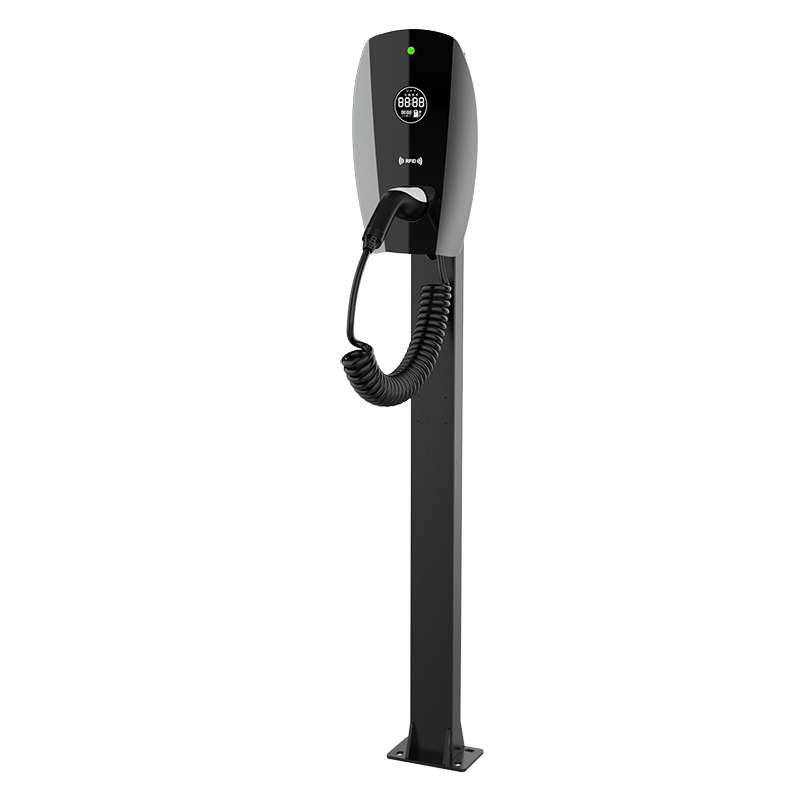

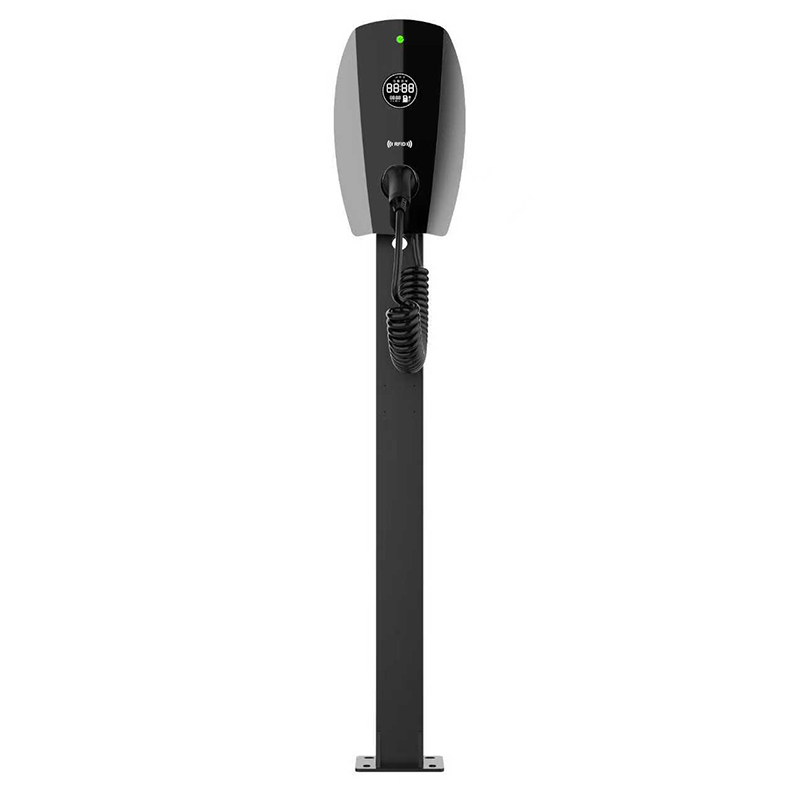

7kw 9.6KW 11KW 22KW J1772/ Type2 /GBT AC Charger Station OCPP1.6 Wallbox Charger with WIFI
This wall-mounted AC charger supports 7kw-22kw multi-power adjustment, compatible with J1772/Type2/GBT three mainstream interfaces and OCPP1.6 protocol, combined with WIFI intelligent connection, providing an efficient and highly adaptable charging solution for new energy vehicles.
| Plug and charge, zero operation threshold | Wall-mounted space-saving, ultra-convenient installation | Full-interface compatible, no vehicle model restrictions |
![]() |
![]() |
![]() |

Parameters
|
Item |
7kw 11KW 22kw AC EV Charger Station |
|
Product Model |
KRT-EVST-22KW |
|
Rated Current |
16A/32Amp single phase or 3phases |
|
Operation Voltage |
AC 400V Three Phase |
|
Rated frequency |
50/60Hz |
|
Leakage Protection |
Type A +DC6mA |
|
Shell Material |
plastic |
|
Status Indication |
LED Status Indicator |
|
Function |
RFID Card |
|
Atmospheric Pressure |
80KPA ~ 110KPA |
|
Relative Humidity |
5%~95% |
|
Operating Temperature |
-30°C~+60°C |
|
Storage Temperature |
-40°C~+70°C |
|
Protection Degree |
IP65 |
|
Dimensions |
350mm (L) X 215mm (W) X 110mm (H) |
|
Weight |
7.0 KG |
|
Standard |
IEC 61851-1:2010 EN 61851-1:2011 IEC 61851-22:2002 EN 61851-22:2002 |
|
Certification |
TUV,CE Approved |
|
Protection |
1.Over and under frequency protection 2. Over Current Protection 3.Leakage Current Protection (restart recover) 4. Over Temperature Protection 5.Overload protection (self-checking recover) 6. Ground Protection and Short circuit protection 7.Over voltage and under-voltage protection 8. Lighting Protection |

Advantages




Application Scenarios





FAQ
1.Which vehicle models does this charger support?
Answer: Compatible with all new energy passenger vehicles equipped with J1772/Type2/GBT interfaces (such as Tesla, BYD, NIO, Volkswagen, BMW and other mainstream brand models).
2.How to choose different power specifications?
Answer: 7kw/9.6/22kw is recommended for private home use, adapting to household circuit load; 11kw/22kw is recommended for commercial scenarios or fast energy supplement (please confirm that the power supply line supports the corresponding power).
3.What specific operations can the WIFI function realize?
Answer: Remote check of charging progress, start/stop charging, query of charging records via mobile APP or background management system, with fault alarm reminder.
4.What is the role of OCPP1.6 protocol?
Answer: As an open charging protocol, it can realize the connection between the charger and third-party charging operation platforms, supporting functions such as billing and data statistics, specially designed for commercial operation scenarios.
5.What conditions are required for installation?
Answer: An independent power supply circuit is required (it is recommended to ask a professional electrician to evaluate the line load), the installation location should be ventilated and rainproof, and a stable wall is required for wall-mounted installation, suitable for indoor and outdoor scenarios.
