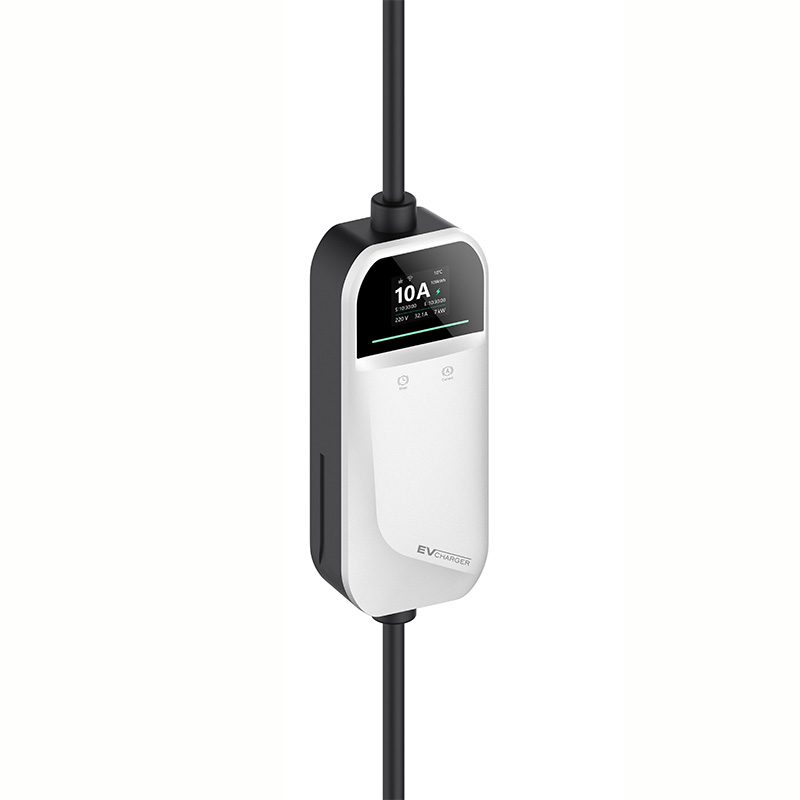

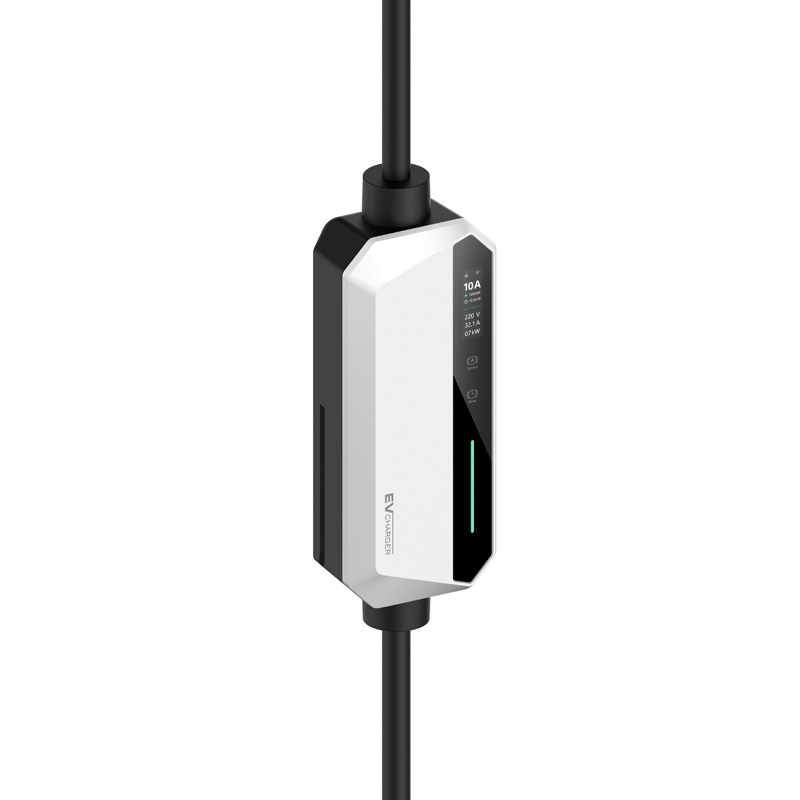

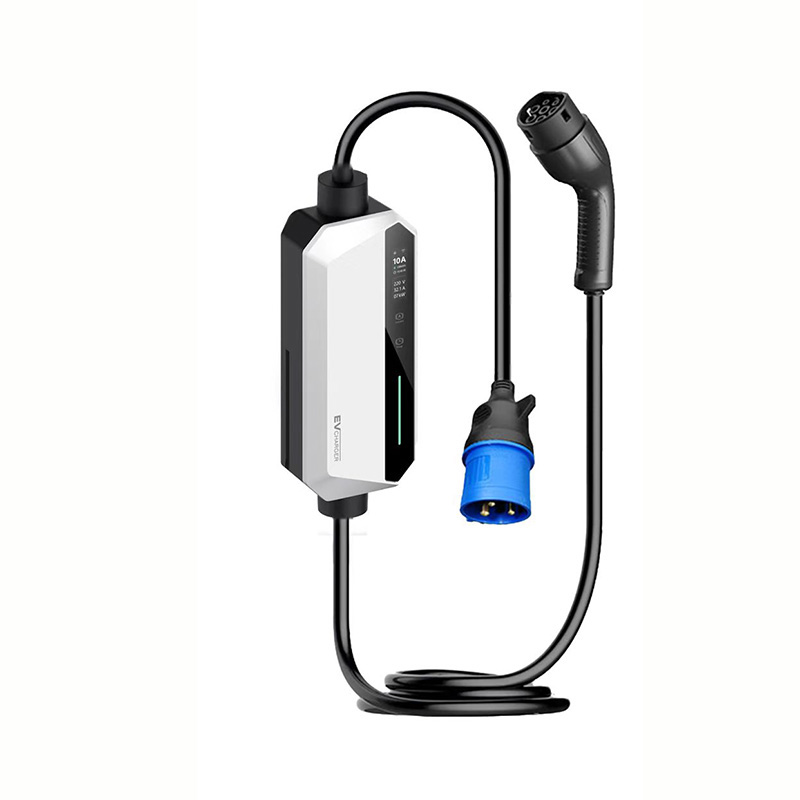

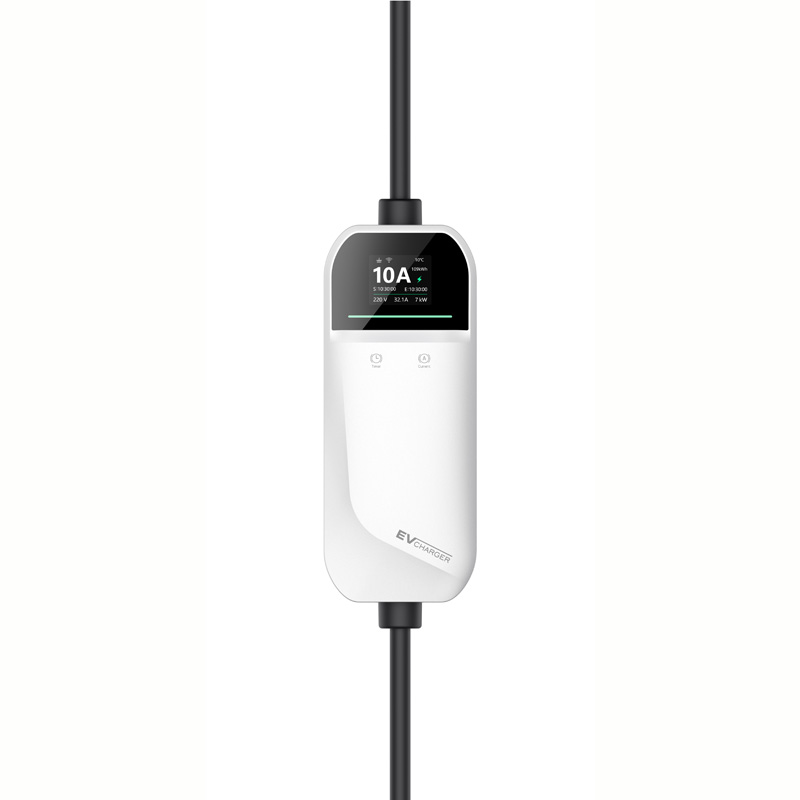

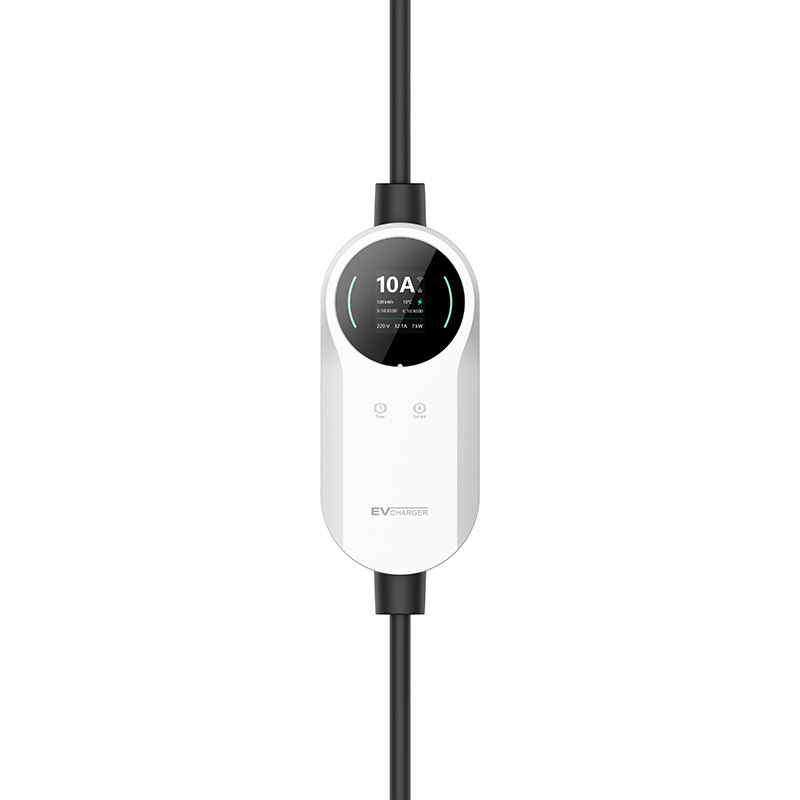

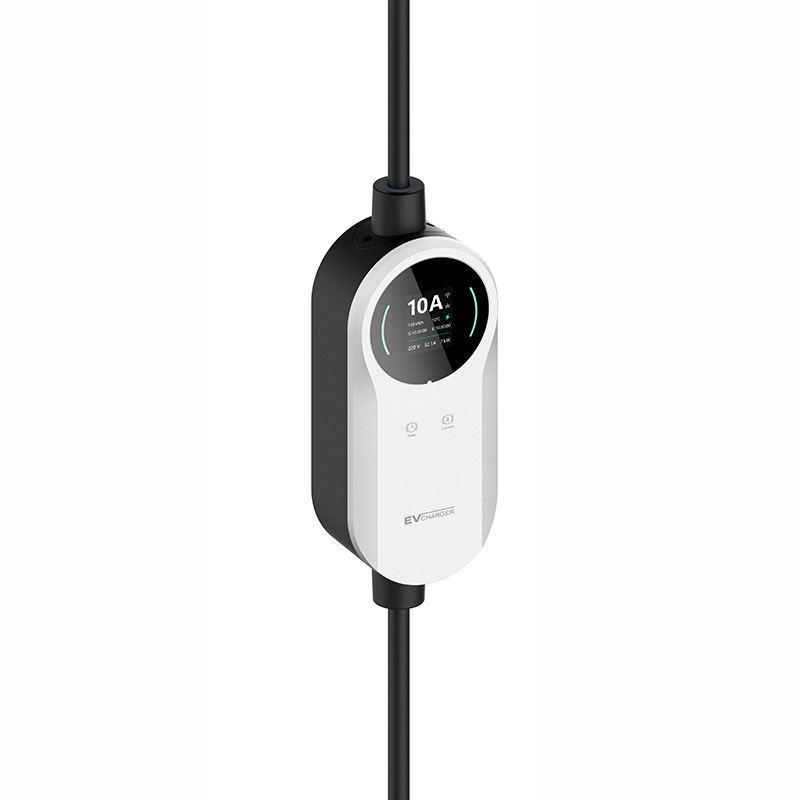

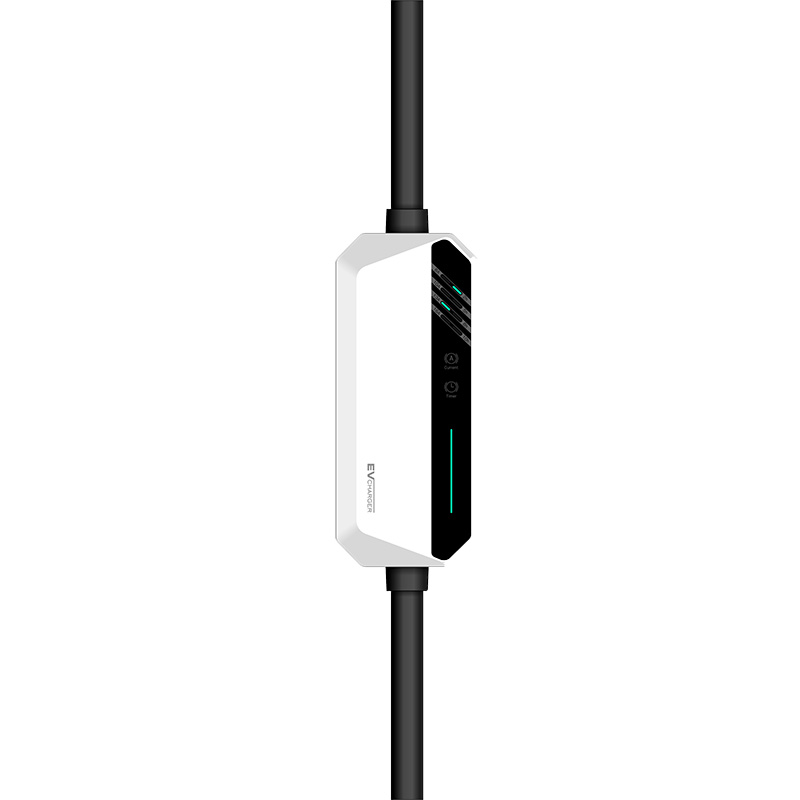

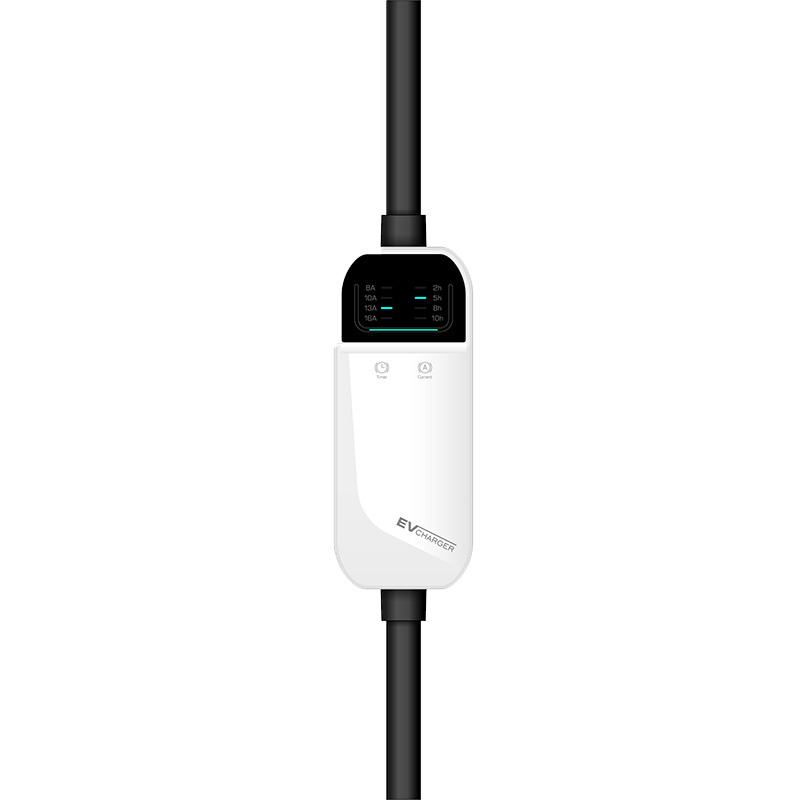

Portable Ev charger offers 3.5/7kw/11kw/22kw multi-power output, supports 16A/32A single-phase or three-phase power supply, features IP65 high protection, and 8 safety protections, is TUV/CE certified, compatible with all new energy vehicles with Type2 interface, suitable for home use
| Plug and charge, zero operation threshold |
Portable convenient installation |
Full-interface compatible, no vehicle model restrictions |
 |
 |
 |
Parameters
|
Item |
7kw 11KW 22kw AC EV Charger Station |
|
Product Model |
KRT-EVST-11KW |
|
Rated Current |
16A/32Amp single phase or 3phases |
|
Operation Voltage |
AC 400V Three Phase |
|
Rated frequency |
50/60Hz |
|
Leakage Protection |
Type A +DC6mA |
|
Shell Material |
plastic |
|
Status Indication |
LED Status Indicator |
|
Function |
RFID Card |
|
Atmospheric Pressure |
80KPA ~ 110KPA |
|
Relative Humidity |
5%~95% |
|
Operating Temperature |
-30°C~+60°C |
|
Storage Temperature |
-40°C~+70°C |
|
Protection Degree |
IP65 |
|
Dimensions |
180mm (L) X 130mm (W) X 90mm (H) |
|
Weight |
3.0 KG |
|
Standard |
IEC 61851-1:2010 EN 61851-1:2011 IEC 61851-22:2002 EN 61851-22:2002 |
|
Certification |
TUV,CE Approved |
|
Protection |
1.Over and under frequency protection 2. Over Current Protection 3.Leakage Current Protection (restart recover） 4. Over Temperature Protection 5.Overload protection (self-checking recover) 6. Ground Protection and Short circuit protection 7.Over voltage and under-voltage protection 8. Lighting Protection |
Product Feature
This electric car charger is our most powerful charging solution. It is capable of fully charging a Renault Zoe with a 23.3 kWh battery in 1h 15m (Note that only certain vehicles support 22 kW AC charging).
This EV charger is equipped with an LED display that displays information on 6 metrics: current (A), voltage (V), charging power (kW), consumed energy (kWh), operating temperature, and charging time.
The charger features WiFi and is compatible with the Smart Life/Tuya app, allowing remote control of charging settings, power adjustment, delayed charging, time range setup, and access to charging history.
The charger also has a delay timer, which can start charging your car up to 10 hours after plugging it in.
We understand how important safety is when it comes to electricity. Our charger is CE certified and has 6 different protections against leakage, under-voltage, lightning, over-voltage, overload, and over-temperature. The charger features RCD Type A, AC< 30mA, DC < 6 mA. Protection level of IP66. Comes with a 2-year warranty.
Neatly packed in a carrying bag.
This wall-mounted AC charger supports 7kw-22kw multi-power adjustment, compatible with J1772/Type2/GBT three mainstream interfaces and OCPP1.6 protocol, combined with WIFI intelligent connection, providing an efficient and highly adaptable charging solution for new energy vehicles. Plug and charge, zero operation threshold Wall-mounted space-saving, ultra-convenient installation Full-interface compatible, no vehicle model restrictions
Details
Type2 Wallbox Charger with socket offers 7kw/11kw/22kw multi-power output, supports 16A/32A single-phase or three-phase power supply, features IP65 high protection, RFID authorization management and 8 safety protections, is TUV/CE certified, compatible with all new energy vehicles with Type2 interface, suitable for home and commercial scenarios. Plug and charge, zero operation threshold Wall-mounted space-saving, ultra-convenient installation Full-interface compatible, no vehicle model restrictions
Details
Portable Ev charger offers 3.5/7kw/11kw/22kw multi-power output, supports 16A/32A single-phase or three-phase power supply, features IP65 high protection, and 8 safety protections, is TUV/CE certified, compatible with all new energy vehicles with Type2 interface, suitable for home use Plug and charge, zero operation threshold Portable convenient installation Full-interface compatible, no vehicle model restrictions
Details
This wall-mounted AC charger supports 7kw-22kw multi-power adjustment, compatible with J1772/Type2/GBT three mainstream interfaces and OCPP1.6 protocol, combined with WIFI intelligent connection, providing an efficient and highly adaptable charging solution for new energy vehicles. Plug and charge, zero operation threshold Wall-mounted space-saving, ultra-convenient installation Full-interface compatible, no vehicle model restrictions
Details
Introducing a versatile and efficient dual-socket, floor-standing AC EV charger featuring two 22kW outputs, perfect for meeting the growing demand for electric vehicle charging. With a MID-certified meter, this charger ensures accurate billing, making it a reliable choice for any location. Its IP65 weatherproof protection allows for seamless outdoor installation, designed to withstand various environmental conditions. The charger supports multiple payment options, including RFID, QR codes, and credit cards, providing convenience for users. Additionally, its OTA-upgradable feature enables remote management, simplifying maintenance and updates. This charging solution can effectively accommodate two electric vehicles simultaneously, making it an excellent addition for hotels, offices, and public parking lots. Enhanced with built-in protections against overcurrent, surges, and residual current, this charger prioritizes safety and reliability for both users and the equipment. Embrace the future of charging with this state-of-the-art EV charger!
Details
Introducing a versatile and efficient dual-socket, floor-standing AC EV charger featuring two 22kW outputs, perfect for meeting the growing demand for electric vehicle charging. With a MID-certified meter, this charger ensures accurate billing, making it a reliable choice for any location. Its IP65 weatherproof protection allows for seamless outdoor installation, designed to withstand various environmental conditions. The charger supports multiple payment options, including RFID, QR codes, and credit cards, providing convenience for users. Additionally, its OTA-upgradable feature enables remote management, simplifying maintenance and updates. This charging solution can effectively accommodate two electric vehicles simultaneously, making it an excellent addition for hotels, offices, and public parking lots. Enhanced with built-in protections against overcurrent, surges, and residual current, this charger prioritizes safety and reliability for both users and the equipment. Embrace the future of charging with this state-of-the-art EV charger!
