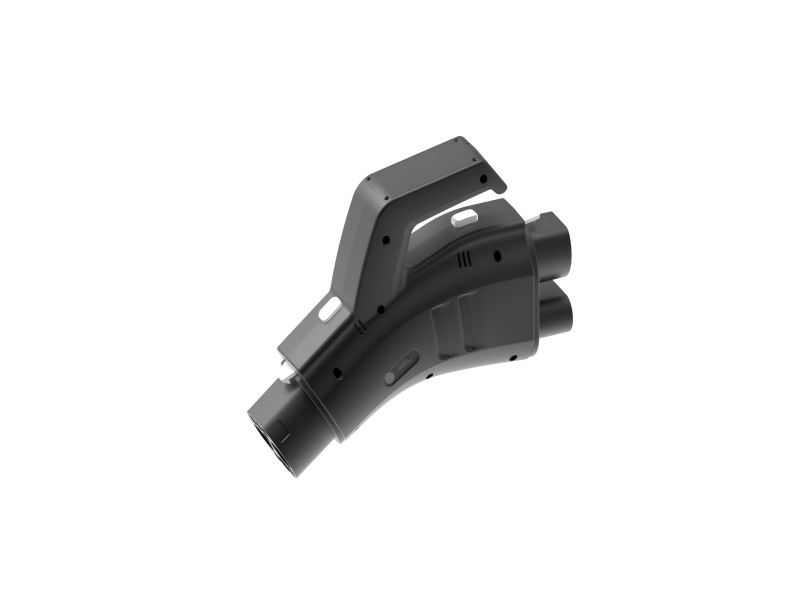

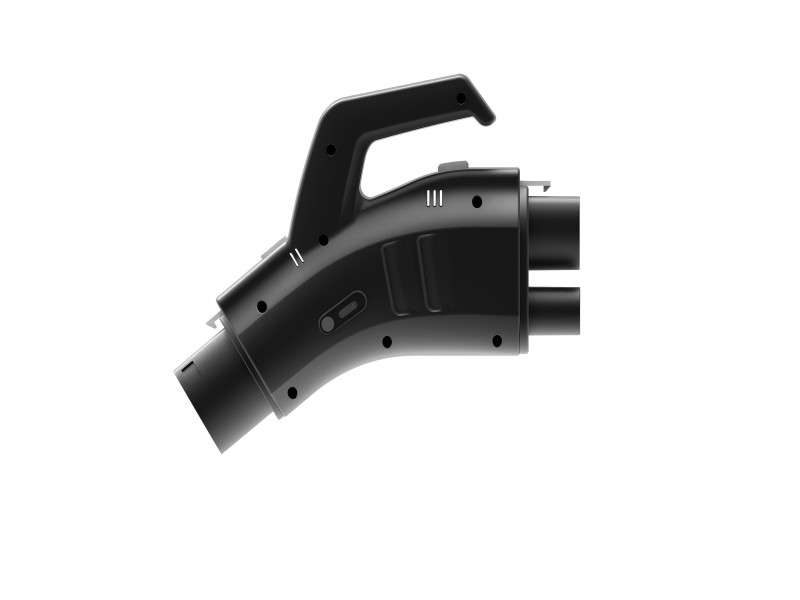

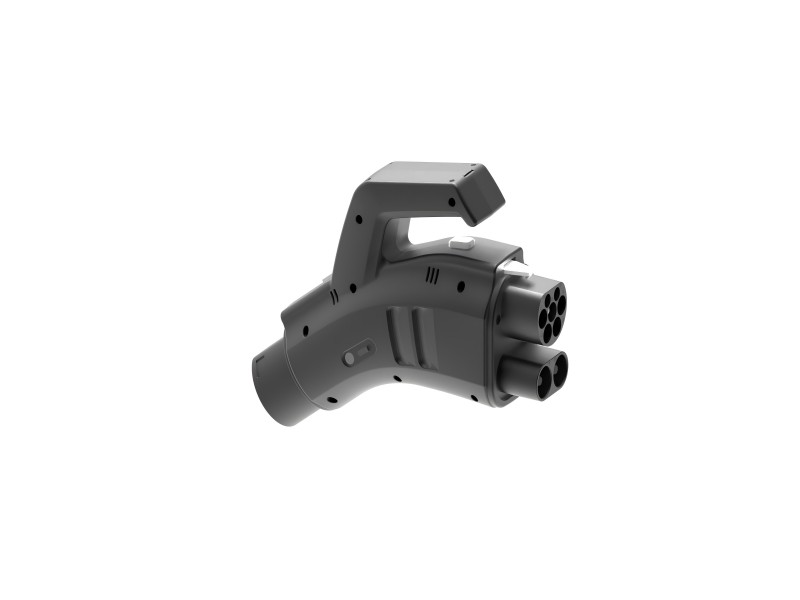

This CCS2 to GBT Dc charging adapter allows you to charge electric vehicles imported from China at CCS2 charging stations. The adapter is rated at 250 kW. The adapter is compatible with all EVs with a GB/T port. If you have compatibility concerns, feel free to contact us. The adapter has a USB-C port for firmware updates
| Plug and charge, zero operation threshold |
Portable convenient installation |
Full-interface compatible, no vehicle model restrictions |
 |
 |
 |
Parameters
|
Item |
CCS2 to GBT Ev charging adapter |
|
Rated Current |
250/400A |
|
Withstand Voltage |
2000v |
|
Rated frequency |
50/60Hz |
|
Machinical life |
20000times |
|
Insulation Resistance |
＞1000MΩ（DC500V） |
|
Withstand Voltage |
3200V |
|
Contact Resistance |
0.5mΩ Max |
|
Atmospheric Pressure |
80KPA ~ 110KPA |
|
Relative Humidity |
5%~95% |
|
Operating Temperature |
-30°C~+60°C |
|
Storage Temperature |
-40°C~+70°C |
|
Protection Degree |
IP55 |
|
Weight |
1.8KG |
|
Standard |
IEC 61851-1:2010 EN 61851-1:2011 IEC 61851-22:2002 EN 61851-22:2002 |
|
Certification |
TUV,CE Approved |
|
Protection |
1.Over and under frequency protection 2. Over Current Protection 3.Leakage Current Protection (restart recover） 4. Over Temperature Protection 5.Overload protection (self-checking recover) 6. Ground Protection and Short circuit protection 7.Over voltage and under-voltage protection 8. Lighting Protection |
Product Feature
This is the most compatible CCS2-GBT Adapter- tested at over 50 charging brands. Upgraded version with 400A current.
This adapter allows you to charge electric vehicles imported from China at CCS2 charging stations. The adapter is rated at 400 kW. The adapter is compatible with all EVs with a GB/T port. If you have compatibility concerns, feel free to contact us. The adapter has an OTA and an APP function, so you can easily update the firmware and monitor the charging status on the App. Comes with a 1-year warranty (2 years for EU customers).
We offer lifetime software support(in case there are compatibility issues after a vehicle update or a new unsupported charging station emerges, we will send you updated firmware for the adapter).
The adapter works with a 18650 rechargeable battery. You need to charge the battery only the first time; after that, it will be automatically charged.
Most EVs have a 400 V battery architecture, meaning that they can withdraw around 110-120 kW of power (400 V*300 A). Electric cars with 800 V battery architecture will be able to withdraw 200-240 kW of power.
This CCS2 to GBT Dc charging adapter allows you to charge electric vehicles imported from China at CCS2 charging stations. The adapter is rated at 250 kW. The adapter is compatible with all EVs with a GB/T port. If you have compatibility concerns, feel free to contact us. The adapter has a USB-C port for firmware updates Plug and charge, zero operation threshold Portable convenient installation Full-interface compatible, no vehicle model restrictions
Details
This GBT to CCS2 Dc charging adapter allows you to charge electric vehicles at GBT charging stations. The adapter is rated at 300kW. The adapter is compatible with all EVs with a CCS2 port. If you have compatibility concerns, feel free to contact us. The adapter has a USB-C port for firmware updates Plug and charge, zero operation threshold Portable convenient installation Full-interface compatible, no vehicle model restrictions
Details
This CCS2 to CCS1 Dc charging adapter allows you to charge electric vehicles at CCS2 charging stations with EV imported from USA. The adapter is rated at 300kW. The adapter is compatible with all EVs with a CCS1 port. If you have compatibility concerns, feel free to contact us. Connect CCS1 (US Standard) EVs to CCS2 (EU Standard) DC Fast Chargers. Rated for 250A / 1000V DC. Features passive protocol bridging and IP54 protection for outdoor fleet operations. Plug and charge, zero operation threshold Portable convenient installation Full-interface compatible, no vehicle model restrictions
Details
This CCS2 to Tesla Dc charging adapter allows you to charge electric vehicles at CCS2 charging stations with Tesla EV imported from USA. The adapter is rated at 300kW. The adapter is compatible with all EVs with a Tesla charging port. If you have compatibility concerns, feel free to contact us. Connect Tesla (US Standard) EVs to CCS2 (EU Standard) DC Fast Chargers. Rated for 250A / 1000V DC. Features passive protocol bridging and IP54 protection for outdoor fleet operations. Plug and charge, zero operation threshold Portable convenient installation Full-interface compatible, no vehicle model restrictions
Details
This CCS2 to GBT Dc charging adapter allows you to charge electric vehicles imported from China at CCS2 charging stations. The adapter is rated at 250 kW. The adapter is compatible with all EVs with a GB/T port. If you have compatibility concerns, feel free to contact us. The adapter has a USB-C port for firmware updates Plug and charge, zero operation threshold Portable convenient installation Full-interface compatible, no vehicle model restrictions
Details
This V2L adapter is designed to power various standard 230 Vac electrical devices with standard household plugs (power tools, cookers, ovens, refrigerators, lights, computers, charge electric bicycles/scooters/etc and other electrical appliances) from MG electric vehicles that feature on-board V2L (vehicle-to-load) system. Plug and charge, zero operation threshold Portable convenient installation Full-interface compatible, no vehicle model restrictions
