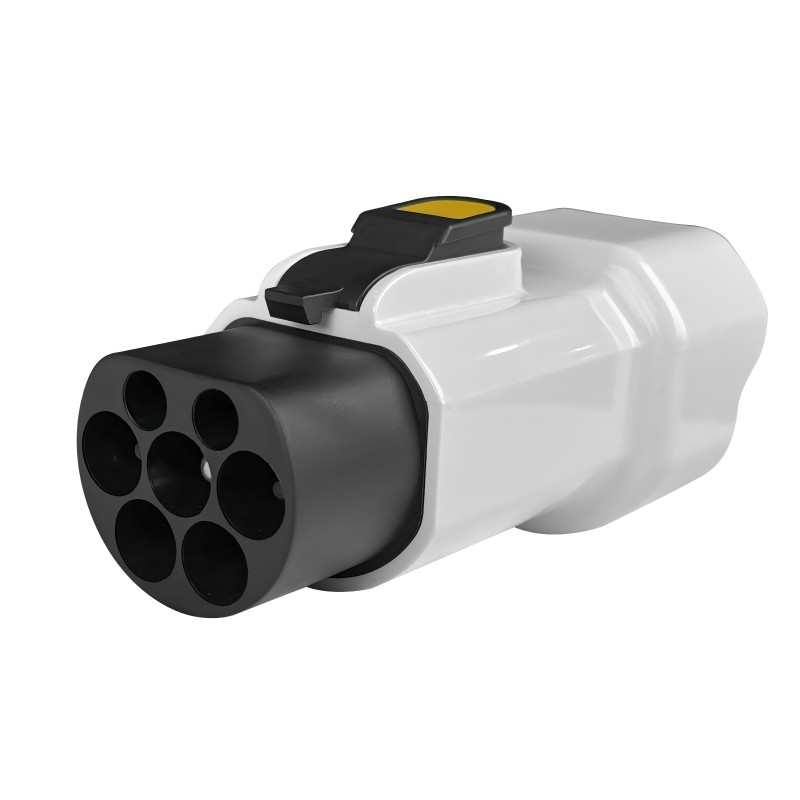

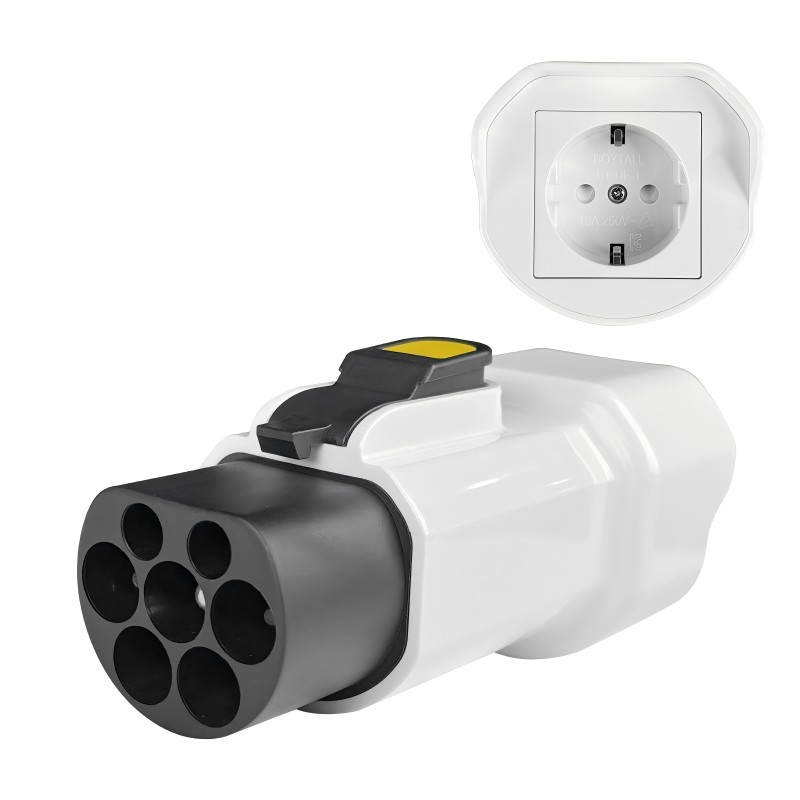

GBT V2L Portable Discharger V2L Discharge Adapter GBT (16A) Vehicle-To-Load
This GBT adapter is designed for all EVs which have a V2L (Vehicle-to-Load) feature-
This adapter allows users of vehicles with a GB/T charging port to draw power directly from the vehicle to power 220v compatible electronic devices.
This converter allows you to power any electric appliances, chargers, or devices as long as they use 16A or less. Whether you're on a road trip, camping, or enjoying some fresh air, the V2L adapter will allow you to power a small oven, a kettle, a coffee machine, a laptop, a lamp, a speaker, and more.
You can even charge another vehicle with this adapter as long as you have a NEMA 5-15 portable charger.
| Plug and charge, zero operation threshold |
Portable convenient installation |
Full-interface compatible, no vehicle model restrictions |
 |
 |
 |
Parameters
|
Item |
GBT vehicle-to-load (V2L) adapter |
|
Max Output |
3.5kw |
|
Outlet |
Outlets: 220V/110V Schuko (1×16A )or outlet can be customized |
|
Output voltage |
Output Voltage: 220 V / 110V ±6%, 50/60 Hz |
|
Efficiency |
Up to 99% |
|
Operating Temp |
Operating Temp: -20°C to +60°C |
|
Contact Resistance |
0.5mΩ Max |
|
Atmospheric Pressure |
80KPA ~ 110KPA |
|
Weight |
0.5KG |
|
Standard |
IEC 61851-1:2010 EN 61851-1:2011 IEC 61851-22:2002 EN 61851-22:2002 |
|
Certification |
TUV,CE Approved |
|
Protection |
1.Over and under frequency protection 2. Over Current Protection 3.Leakage Current Protection (restart recover） 4. Over Temperature Protection 5.Overload protection (self-checking recover) 6. Ground Protection and Short circuit protection 7.Over voltage and under-voltage protection 8. Lighting Protection |
Product Features

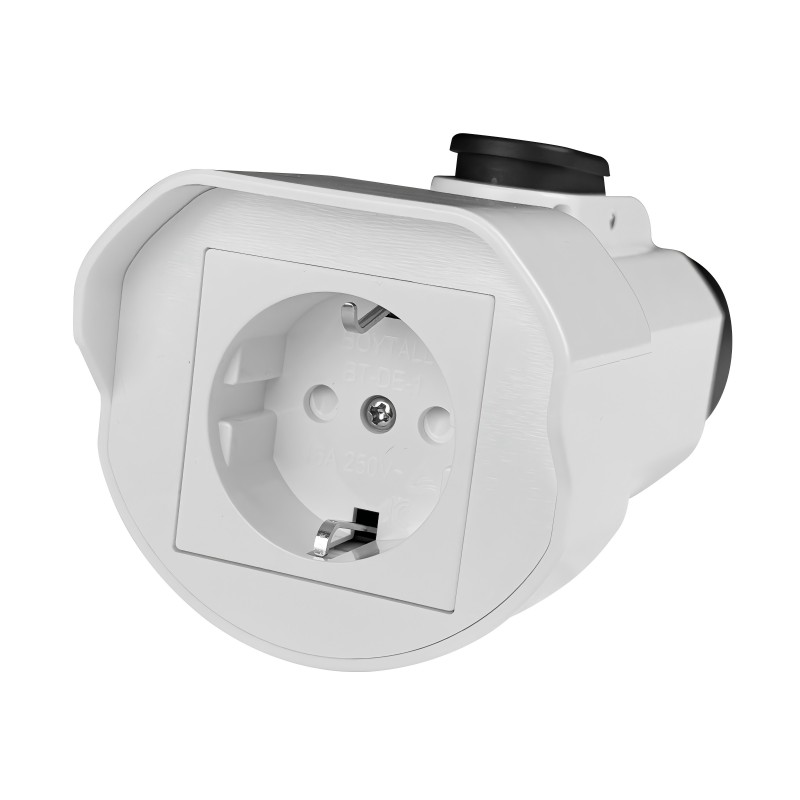

COMPACT ALL-IN-ONE PLUG design – NO cables between vehicle plug and socket outlet
Maximum output power up to 3.5 kW (depending on the socket outlet)
Using V2L-in combination with Metron portable EV charger(s) you can also charge any other electric car from your Ev car.
All weather-proof
Technical Specifications:
Plug Type (EV Side): GBT
Socket outlet types (load side): Type F (Schuko) or Type G (UK) or others on request
Maximum continuous output current: 16 A (13 A for Type G)
Max. output power (single phase): 3.5 kW
Rated Voltage (single phase): 230 V
Color: Black (for large quantities we offer any color according to request)
UV resistant :Operating Ambient Air Temperature Range: -40 °C to 50 °C (at full sun exposure)
IP Rating: IP44
Dimensions [max. diameter / length]: 70 mm / 280 mm
Weight: 420 g
GBT compliant
CE approved
Warranty: 3 years
This CCS2 to GBT Dc charging adapter allows you to charge electric vehicles imported from China at CCS2 charging stations. The adapter is rated at 250 kW. The adapter is compatible with all EVs with a GB/T port. If you have compatibility concerns, feel free to contact us. The adapter has a USB-C port for firmware updates Plug and charge, zero operation threshold Portable convenient installation Full-interface compatible, no vehicle model restrictions
Details
This GBT to CCS2 Dc charging adapter allows you to charge electric vehicles at GBT charging stations. The adapter is rated at 300kW. The adapter is compatible with all EVs with a CCS2 port. If you have compatibility concerns, feel free to contact us. The adapter has a USB-C port for firmware updates Plug and charge, zero operation threshold Portable convenient installation Full-interface compatible, no vehicle model restrictions
Details
This CCS2 to CCS1 Dc charging adapter allows you to charge electric vehicles at CCS2 charging stations with EV imported from USA. The adapter is rated at 300kW. The adapter is compatible with all EVs with a CCS1 port. If you have compatibility concerns, feel free to contact us. Connect CCS1 (US Standard) EVs to CCS2 (EU Standard) DC Fast Chargers. Rated for 250A / 1000V DC. Features passive protocol bridging and IP54 protection for outdoor fleet operations. Plug and charge, zero operation threshold Portable convenient installation Full-interface compatible, no vehicle model restrictions
Details
This CCS2 to Tesla Dc charging adapter allows you to charge electric vehicles at CCS2 charging stations with Tesla EV imported from USA. The adapter is rated at 300kW. The adapter is compatible with all EVs with a Tesla charging port. If you have compatibility concerns, feel free to contact us. Connect Tesla (US Standard) EVs to CCS2 (EU Standard) DC Fast Chargers. Rated for 250A / 1000V DC. Features passive protocol bridging and IP54 protection for outdoor fleet operations. Plug and charge, zero operation threshold Portable convenient installation Full-interface compatible, no vehicle model restrictions
Details
This CCS2 to GBT Dc charging adapter allows you to charge electric vehicles imported from China at CCS2 charging stations. The adapter is rated at 250 kW. The adapter is compatible with all EVs with a GB/T port. If you have compatibility concerns, feel free to contact us. The adapter has a USB-C port for firmware updates Plug and charge, zero operation threshold Portable convenient installation Full-interface compatible, no vehicle model restrictions
Details
This V2L adapter is designed to power various standard 230 Vac electrical devices with standard household plugs (power tools, cookers, ovens, refrigerators, lights, computers, charge electric bicycles/scooters/etc and other electrical appliances) from MG electric vehicles that feature on-board V2L (vehicle-to-load) system. Plug and charge, zero operation threshold Portable convenient installation Full-interface compatible, no vehicle model restrictions
